Building a Hanger

Step 1: Choose your hanger

We use three types of hangers:

A single hanger attaches to a single point on a harness.

A side by side Y hanger attaches to both sides of a stem.

A parallel Y hanger, shown here, attaches to two bands of a harness.

Step 2: Choose your finish

Any of the hanger types can be finished with either a tight finish or a loose finish.

A tight finish, shown here, doesn’t slide and performs well at different angles.

A loose finish slides and rotates. It’s useful to attaching to two bands you want to keep separate.

A doubled blue rope crosses the image horizontally. A doubled tan rope has been tied in a snug Somerville bowline around the blue rope. Two double lengths of tan rope travel up the image two inches away from the Somerville, then make a yuki knot. A three inch long bight extends out from the yuki knot. The tail of the rope exits to the top of the image.

Step 3: Add an optional double bight

The double bight is a simple knot that reinforces the bight of a hanger. It also stabilizes the hanger and keeps it from capsizing.

We sometimes use a long double bight to avoid pressure points or rope burn.

Hangers

Single hanger

A single hanger is a single column tie that attaches to a single part of a harness.

It’s commonly used for attaching to single wrap harnesses, and for attaching to the stem of certain TKs.

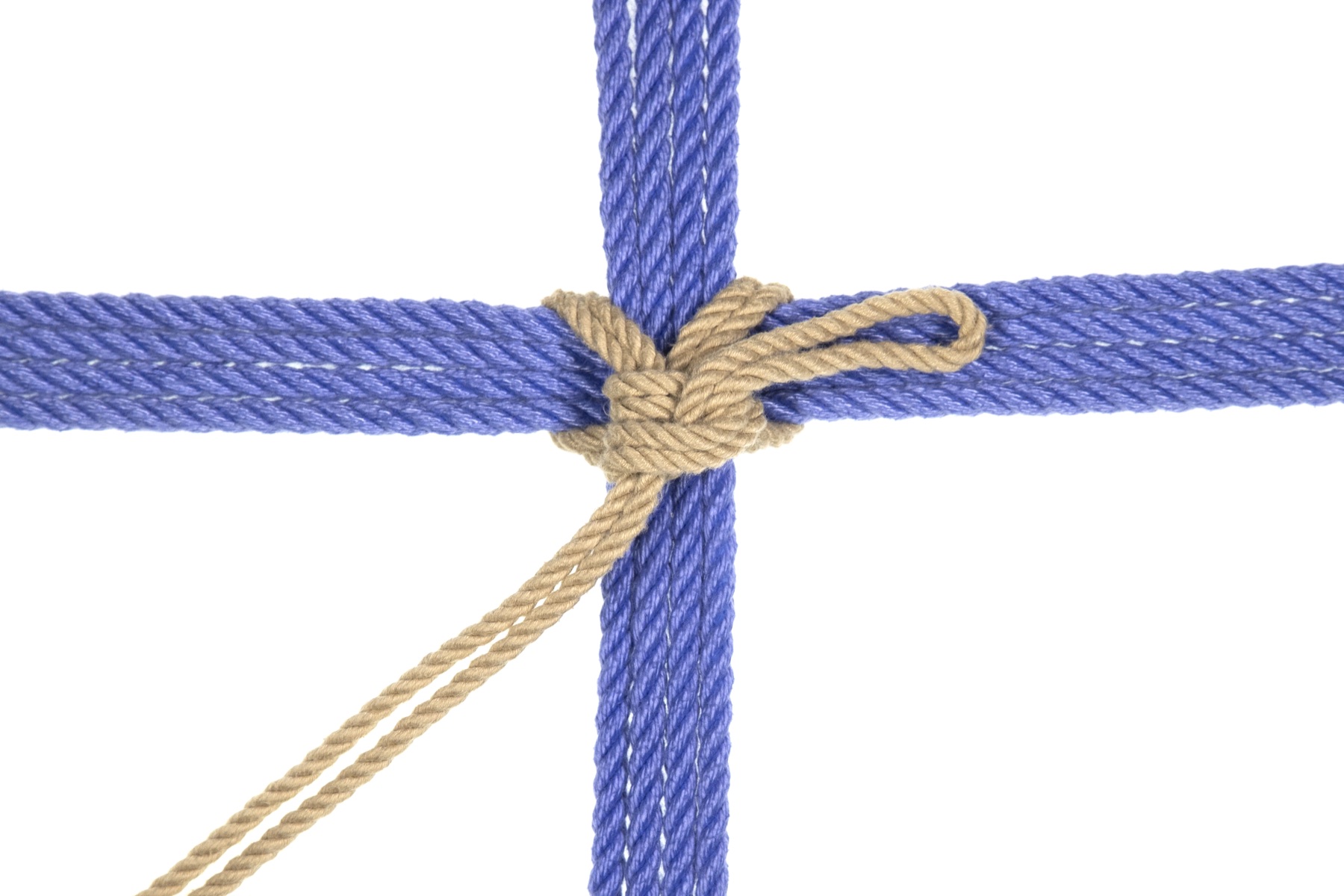

Side by side Y hanger

The side by side Y hanger is most commonly used for attaching to one wrap of a harness on either side of the stem.

The side by side Y hanger is usually finished with a tight finish.

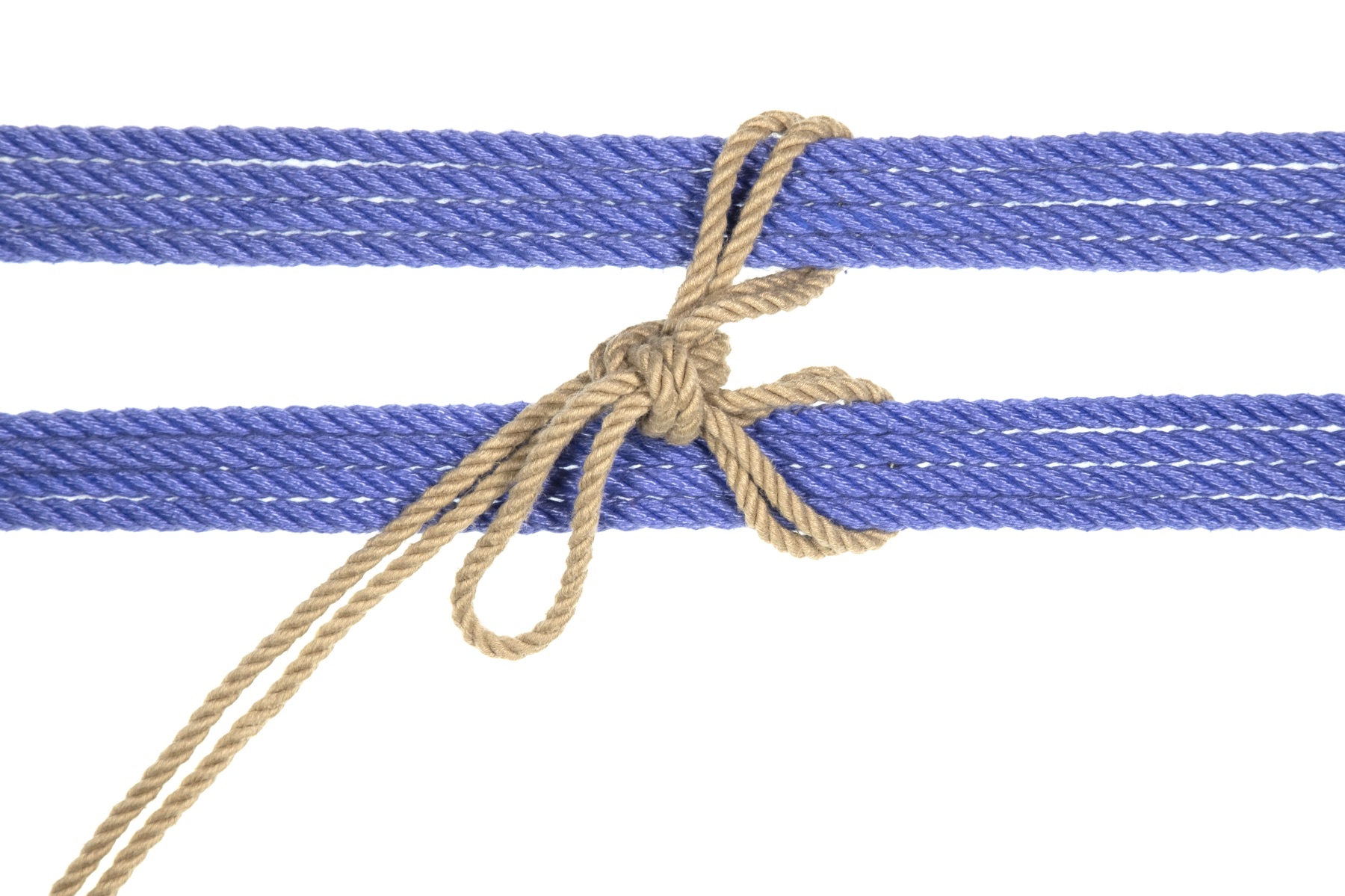

Parallel Y hanger

The parallel Y hanger attaches to two separate points, typically two wraps of a harness. It’s also useful for attaching to both thighs of a hip harness.

The parallel Y hanger is usually finished with a loose finish.

Finishes

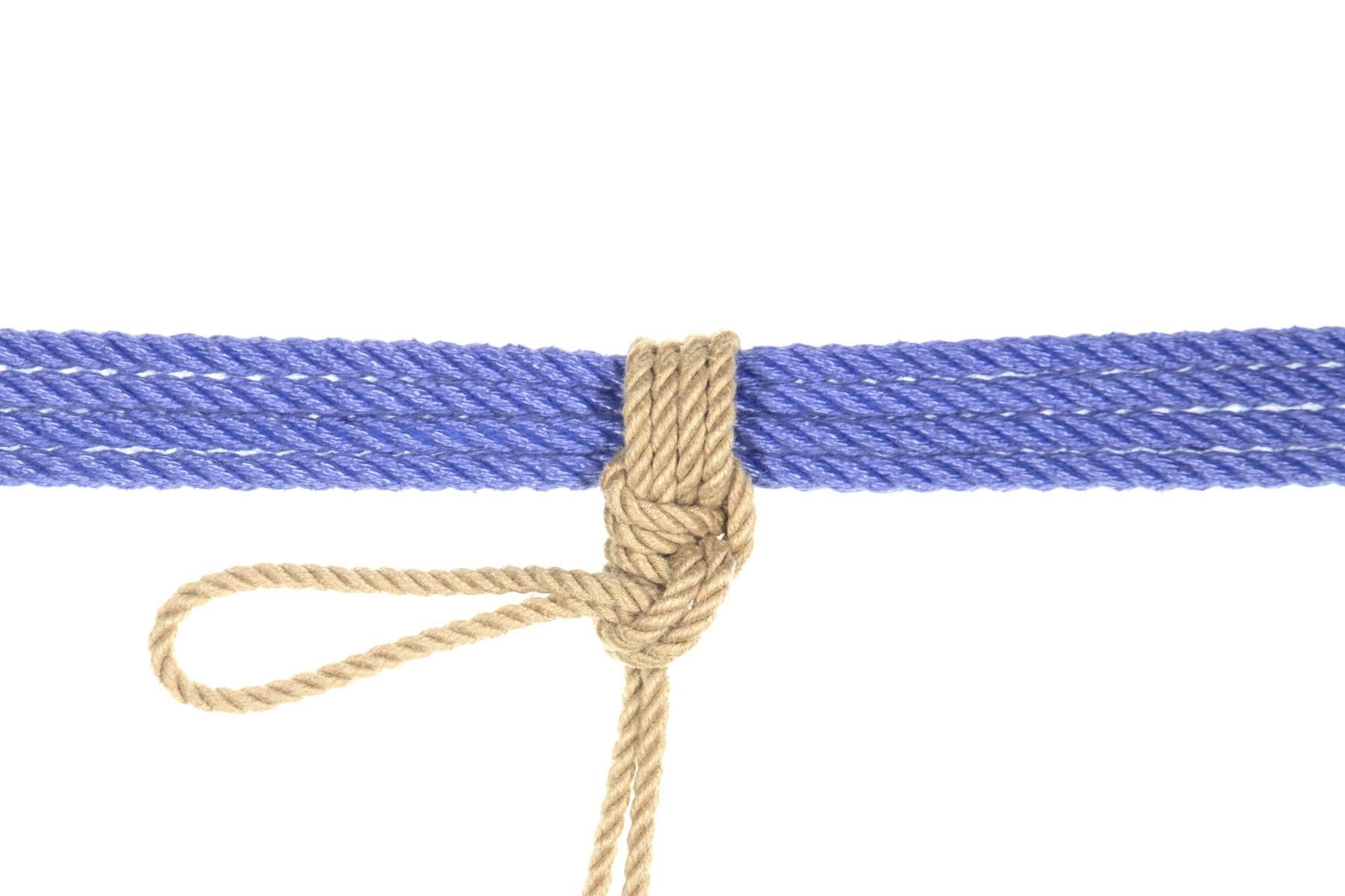

Tight Finish

A tight finish collapses the knot of the hanger against the harness. We use a modified two half hitches knot for our tight finish.

On a single hanger, it creates a secure attachment that won’t slide or rotate. On a Y hanger, it provides a compact attachment that will perform well when loaded at different angles.

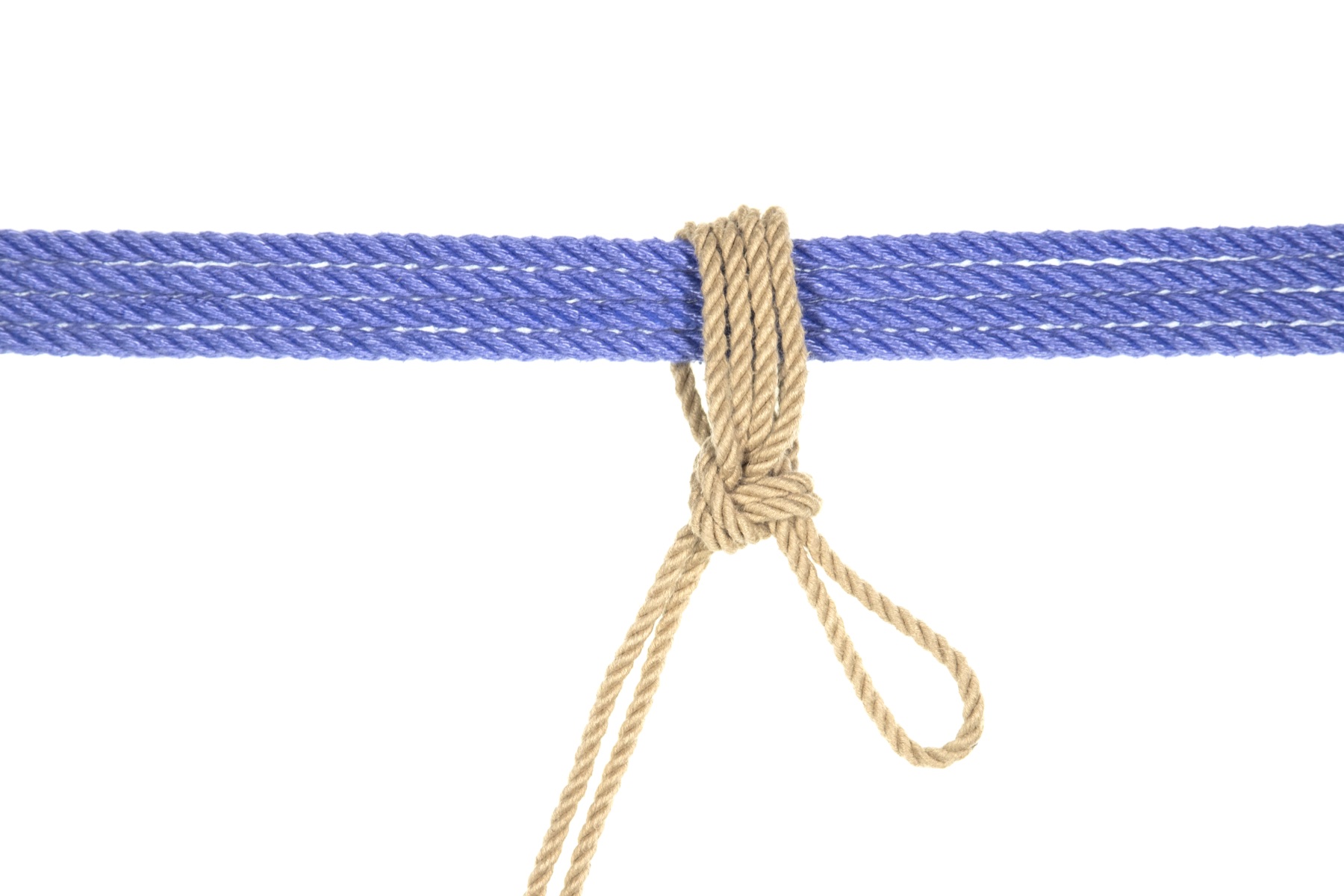

Loose Finish

A loose finish leaves some space between the attachment points and the knot of the hanger. We use a Somerville bowline for our loose finish.

On a single hanger, it allows the attachment point to slide and rotate. On a Y hanger, it maintains separation between the attachment points.

Double Bight

The double bight is a simple knot that turns a standard bight into a doubled bight. It adds stability and durability to the hanger.

Any critical upline should have a hanger with at least two of the following:

Load-rated synthetic rope
A carabiner
A double bight
